Busket Strainer

JSC valve is one of the leading valve manufacturers and service company in China

Products Category

Busket strainer

Busket strainer
  • Busket strainer

  • Basket Strainer

    1. Size: 2″-40″
    2. Pressure: 150LB,300LB
    3. Material: WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M ect
    4. Connection: Flanges

    Feature:

    1. Operating Temperature:CS:-30~380C degree,SS:-80~450C degree
    2. Operating Pressure(Mpa):0.6-5.0Mpa,
    3. Seal material:Asbestos,NBR,PTEF,Graphite+SS, Strainer
    4. Element Material:Stainless steel,
    5. Screen mesh from 18 to 480 eyes,also can refer to clients requestion.

    Standard:

    1. Design and Manufacture:ANSIB16.34
    2. Pressure-temperature rating: ASME B16.34
    3. Face to face(end to end):ANSIB16.10
    4. End Connection: 2″-24″ ASME B16.5; 26″ -42″ ASME B16.47; B.W end ASME B16.25
    5. Test and inspection:API598


    FEATURES
    Size: 2″~40″
    Class: 150~300Lb
    Reduced & Full Port
    Integral Seat
    Basket Type Structure
    SPECIFICATIONS
    Design ASME B16.34
    Face to Face ASME B16.10
    End Flange ASME B16.5
    BW End ASME B16.25
    Test API 598

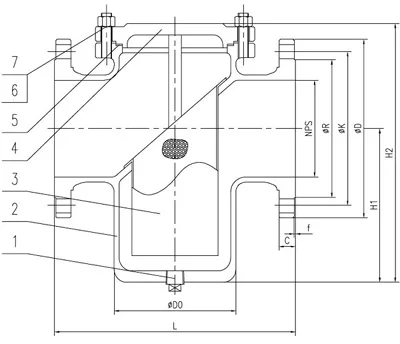

    MAIN PARTS AND MATERIALS
    No.
    		Parts Name Material
    1
    		Drain Valve AISI 1035
    2
    		Body A216 WCB
    3
    		Screen SS304
    4
    		Bonnet A216 WCB
    5
    		Gasket SS304+Graphite
    6
    		Bolt A193 B7
    7
    		Nut A194 2H

    Optional Body Material: A216 WCB, A352 LCB, A351 CF8, CF8M, CF3, CF3M, Duplex,etc.







  • Sales@jscvalves.com
  • JSC VALVE
  • +86-577-67355701
  • Share to:

Basket Strainer

  1. Size: 2″-40″
  2. Pressure: 150LB,300LB
  3. Material: WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M ect
  4. Connection: Flanges

Feature:

  1. Operating Temperature:CS:-30~380C degree,SS:-80~450C degree
  2. Operating Pressure(Mpa):0.6-5.0Mpa,
  3. Seal material:Asbestos,NBR,PTEF,Graphite+SS, Strainer
  4. Element Material:Stainless steel,
  5. Screen mesh from 18 to 480 eyes,also can refer to clients requestion.

Standard:

  1. Design and Manufacture:ANSIB16.34
  2. Pressure-temperature rating: ASME B16.34
  3. Face to face(end to end):ANSIB16.10
  4. End Connection: 2″-24″ ASME B16.5; 26″ -42″ ASME B16.47; B.W end ASME B16.25
  5. Test and inspection:API598

FEATURES
Size: 2″~40″
Class: 150~300Lb
Reduced & Full Port
Integral Seat
Basket Type Structure
SPECIFICATIONS
Design ASME B16.34
Face to Face ASME B16.10
End Flange ASME B16.5
BW End ASME B16.25
Test API 598



MAIN PARTS AND MATERIALS
No.
Parts Name Material
1
Drain Valve AISI 1035
2
Body A216 WCB
3
Screen SS304
4
Bonnet A216 WCB
5
Gasket SS304+Graphite
6
Bolt A193 B7
7
Nut A194 2H

Optional Body Material: A216 WCB, A352 LCB, A351 CF8, CF8M, CF3, CF3M, Duplex,etc.

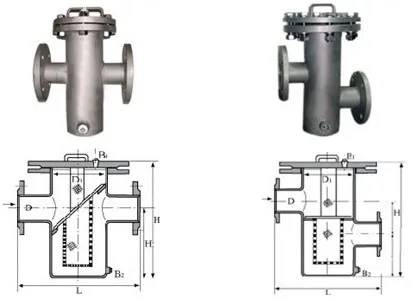

Size

 Dimension  mm

 Plug

 L

 D1

 H2

 H1

 DN25

 180

 76

 260

 160

 G3/8

 DN32

 200

 76

 270

 160

 DN40

 260

 108

 300

 170

 DN50

 260

 108

 300

 170

 DN65

 330

 140

 360

 240

 DN80

 340

 159

 400

 250

 DN100

 400

 219

 470

 300

 DN150

 500

 273

 630

 420

 DN200

 560

 325

 780

 530

 G3/4

 DN250

 660

 420

 930

 640

 DN300

 750

 450

 1200

 840

 DN400

 870

 525

 1540

 960
